Benefits

• Variable speed
• Low power consumption
• Saves on OPEX

Overview:

It is proposed for BTS sites where the acceptable inside temperature is 50 Deg C. The Design is suitable for various combinations of equipment’s within a shelter.

Solution Description:

The Ventilation system will have main components Fan Out unit , Filter Unit and Controller unit. Filter unit to be placed on lower level w. r. t. floor preferably at door. Fan outlet unit should be placed on height closer to roof of shelter on diagonally opposite wall. Ensure that the Fan Unit is installed as possible near to BTS so as hot air gets directly escaped to atmosphere. Micro-controller with in-built intelligent logic is able to ON/OFF and control the speed of fan and ON/OFF upto 2 air-conditioners based on the Ambient and Shelter Temperature thereby air-conditioner run hours is reduced and bringing energy savings.

Controller Features:

• Equal run Hour for both AC
• In Case AC 1 fail auto switch to other AC
• Both AC fail auto switch to Emergency cooling
• Display of FCU run hour
• Display of FCU count
• Display of AC1 and AC2 run hour
• Controller can operate on 230 Vac. Incase Grid fail auto switch to 48VDC
• Dual Display
• Auto fan speed reduction in case of lower ambient to save energy
• 10.DC voltage Protection -In case DC battery voltage goes very low/High FCU shuts off
• 11.Emergency cooling in case Aircon cooling fail/ Grid voltage lose/over/under voltage
• 12.LED display indication and PFC alarm in case failure to fan/ sensor /HT
• 13.All operational details are displayed on controller Box itself

Cabinet DC Active micro cooling

To suit & satisfy the need of today’s telecom site energy conservation by converting Indoor site to Outdoor site without compromising the equipment functionality.

The DC Standard air-conditioner provides a suitable conditioning for equipment in cabinet or shelter maintaining a good temperature for operating.

Features:

• Cooling capacity of 300W upto 3000W
• IP55 Protection
• High energy efficiency ratio (EER)
• Variable speed compressor
• Highly Reliable: Unit is powered by -48VDC power
• Soft start design
• Higher airflow for better air circulation
• Low noise design
• Higher Design life of upto 10 years
• Corrosion protection: Powder coated sheet metal
• Monitoring: Provide comprehensive alarm and status report through RS485 interface for remote control (Optional)
• User friendly LCD display for easy control and convenient operation (Optional)
• Easy installation and maintenance

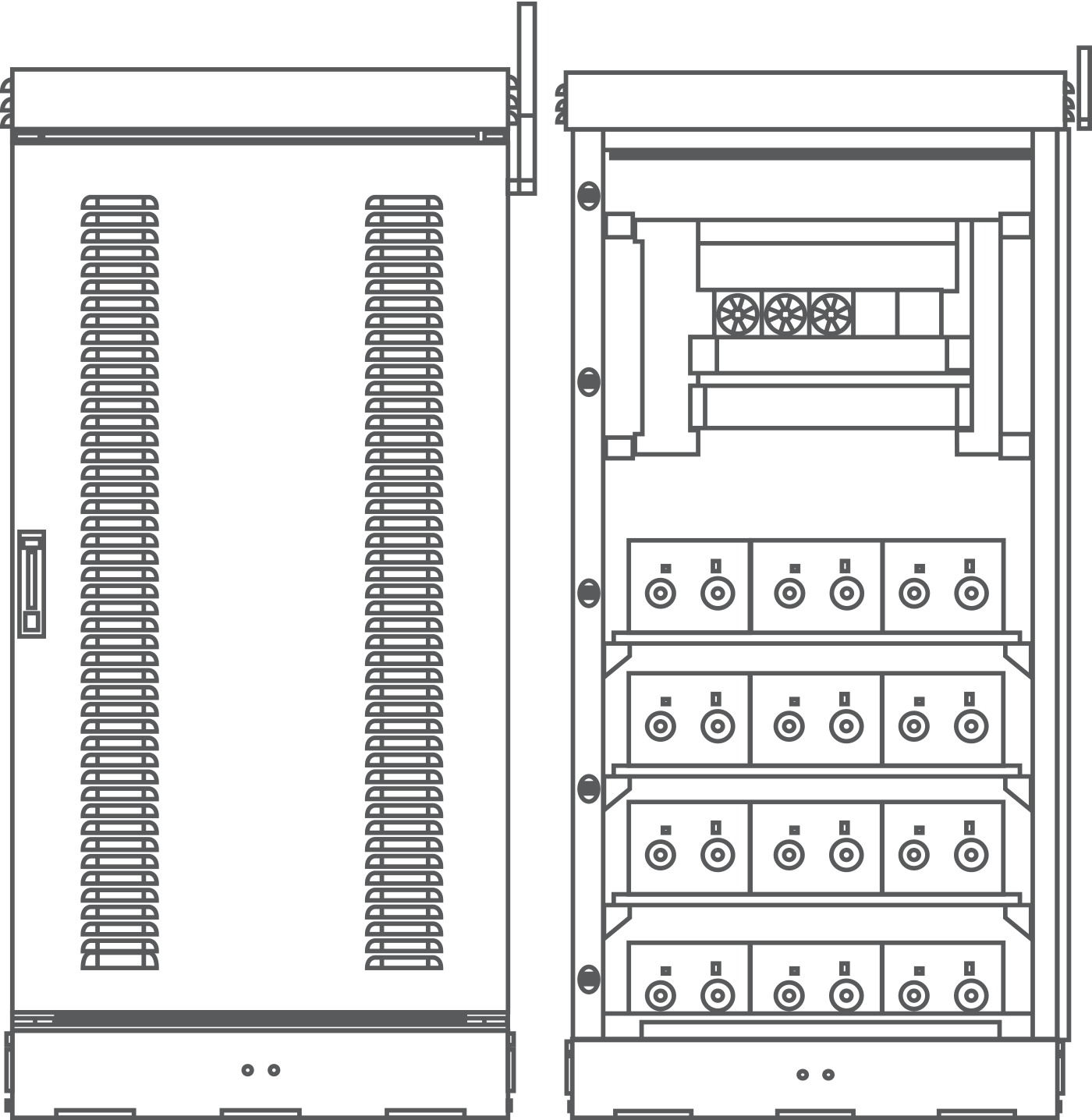

GP outdoor battery cabinets are IP55 outdoor enclosures designed to work for telecom environmental conditions. The cabinets offer compatibility to diverse battery capacities and technologies. Their double skin and 4-point lock mechanism ensures complete protection of installed equipment. Advanced thermal cooling feature enables remarkable savings both in capital and operational expenditures.

Features:

• IP55 double skin /single skin - insulation Outdoor cabinet with ΔT < 10°C
• Suitable to accommodate diverse battery technologies up to 2000Ah
• Side cable entry with flexible configuration of IP65 cable glands
• Minimal maintenance throughout life time
• Future Integration provision for DC Air-con
• Built-in stacks to optimizes space utilization
• Rugged design in compliance with international quality standards
